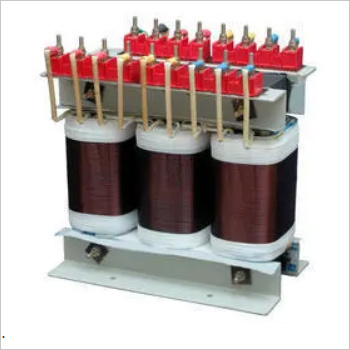

Isolation Transformer

About Isolation Transformer

Owing to inductive loads, capacitive loads, SMPS loads, electronic ballasts and PWM Switching systems, the present AC Power lines are superimposed with spikes, surges, galvanic leakages, transients, sags, RFI noise and harmonics. As a result, operating instruments particularly precision ones do not perform efficiently and distort the quality of end products and in cases may damage the instrument itself.

With Sen & Pandit Electronics Private Limited Isolation Transformer, all sorts of electrical noises, particularly common mode noises, spikes, surges, and transients can be eliminated. It delivers output voltage at 1:1 ratio after considerable elimination of these unwanted other factors in the mains line.

Applications

• CNC MACHINES
• Computer and Peripherals
• Telecommunication Equipments
• Medical Equipments
• Process control equipments
• Scientific Equipments
• Large computer installations and it's peripherals.

Technical Specifications:

Input Voltage	230 V
Output Voltage	230 V
Ratio	1:1
Frequency	503 Hz
Load Regulation	3.5% and 5 %
Dielectric Strength	2 KV for 2 minutes
Common Mode Noise Rejection	Over 120 db
Coupling Capacitance	Less than .005 PF
Capacity	0.5 KVA to 10 KVA

Advanced Safety and Reliability

The isolation transformers double-wound copper and silicon steel core construction enhances safety, preventing electrical shocks and surges. It complies with major standards (IS 2026, IEC 60076) and passes IEC surge tests, ensuring stable operation in high-stress environments. The robust enclosure (IP23/IP54) and powder-coated finish provide superb environmental protection for floor or panel mounting.


Efficient Power Management for Diverse Applications

Offering up to 98% efficiency and minimal load loss, this transformer is tailored for versatile use in medical, industrial, automation, IT, and laboratory setups. Its customizable output voltage and robust design guarantee dependable voltage regulation in both single- and three-phase configurations up to 500 kVA.


Customizable Features and Durable Design

Every transformer is customizable to match your voltage, phase, and mounting requirements. Options include standard or custom boosters, air or oil cooling, and brass terminals/lugs for secure connections. The design ensures quiet operation (<60 dB) and withstands high levels of humidity (up to 95%, non-condensing) and temperatures (-10C to +50C).
